Description

For easy decorative interior fitting applications

Maximum precision thanks to the Bosch Pendulum Precision System

Projection of a vertical and a horizontal line

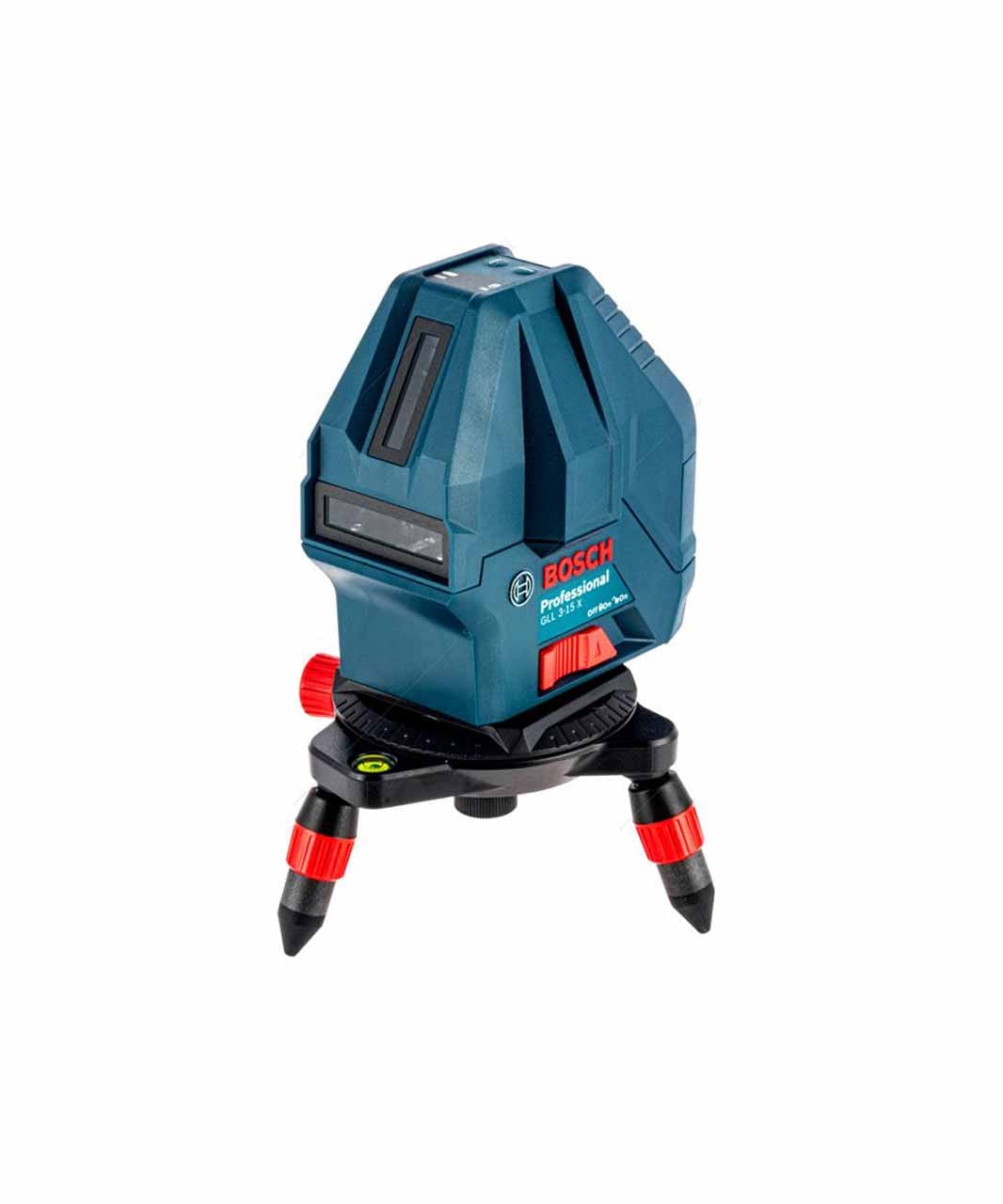

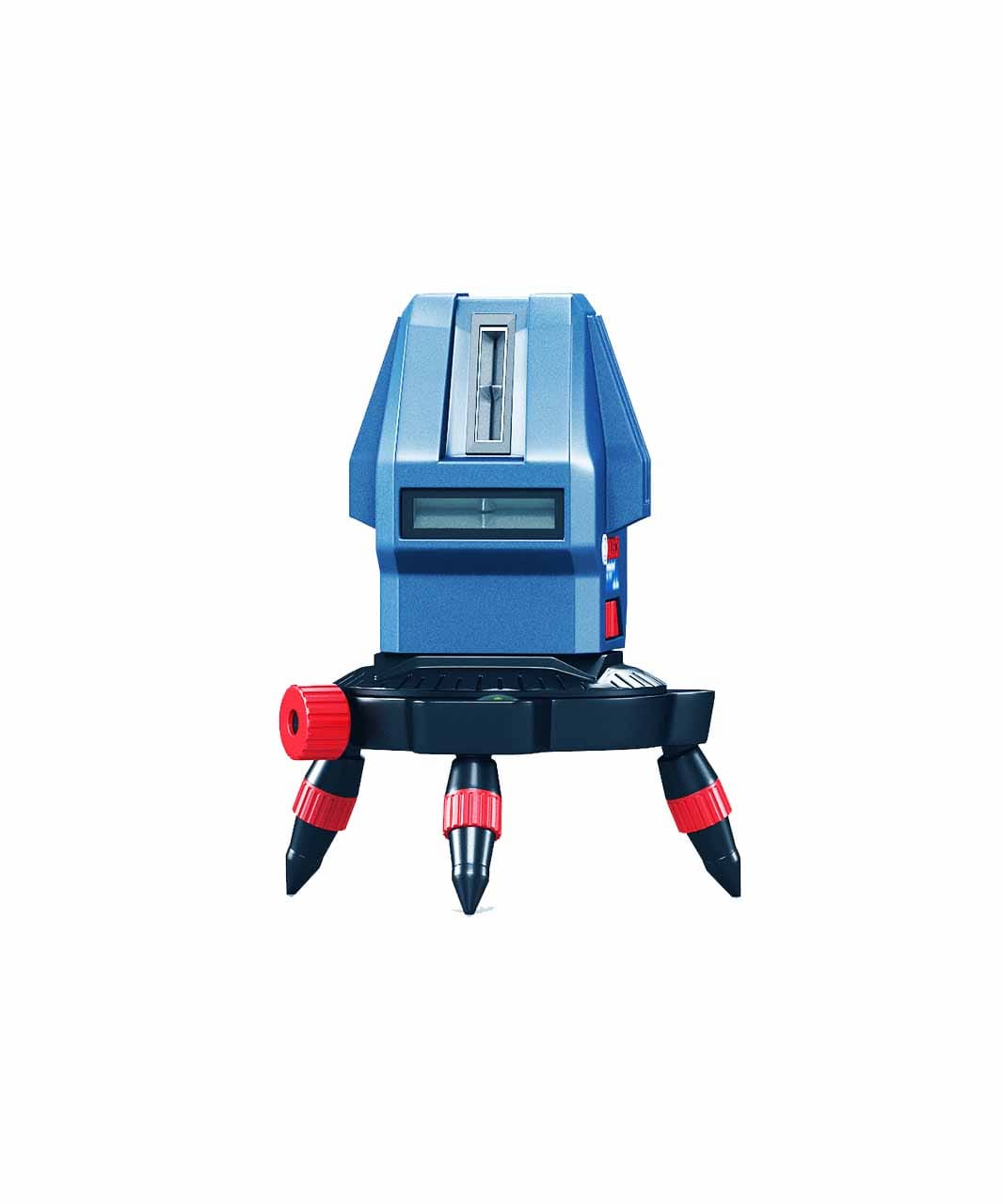

Detachable, 360° rotating platform with bubble vial and fine adjustment

TECHNICAL DATA

Additional data

Accuracy | Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)

Projection | 3 lines + 1 plumb point

Working range | 15 m

Laser diode | 630 – 650 nm, < 1mW

Operating temperature | -10 – 45 °C

Storage temperature | -20 – 70 °C

Laser class | 2

Working range of laser points, max. | 5 m (bottom)

Self-levelling range | ± 3°

Levelling time | 4 s

Power supply | 4 x 1.5 V LR6 (AA)

Operating time (max.) | 24 h

Tripod thread | 5/8″

Weight, approx. | 0.72 kg

Colour of laser line | red

Color of plumb points | red

Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation)

Working range, value | 15 m
